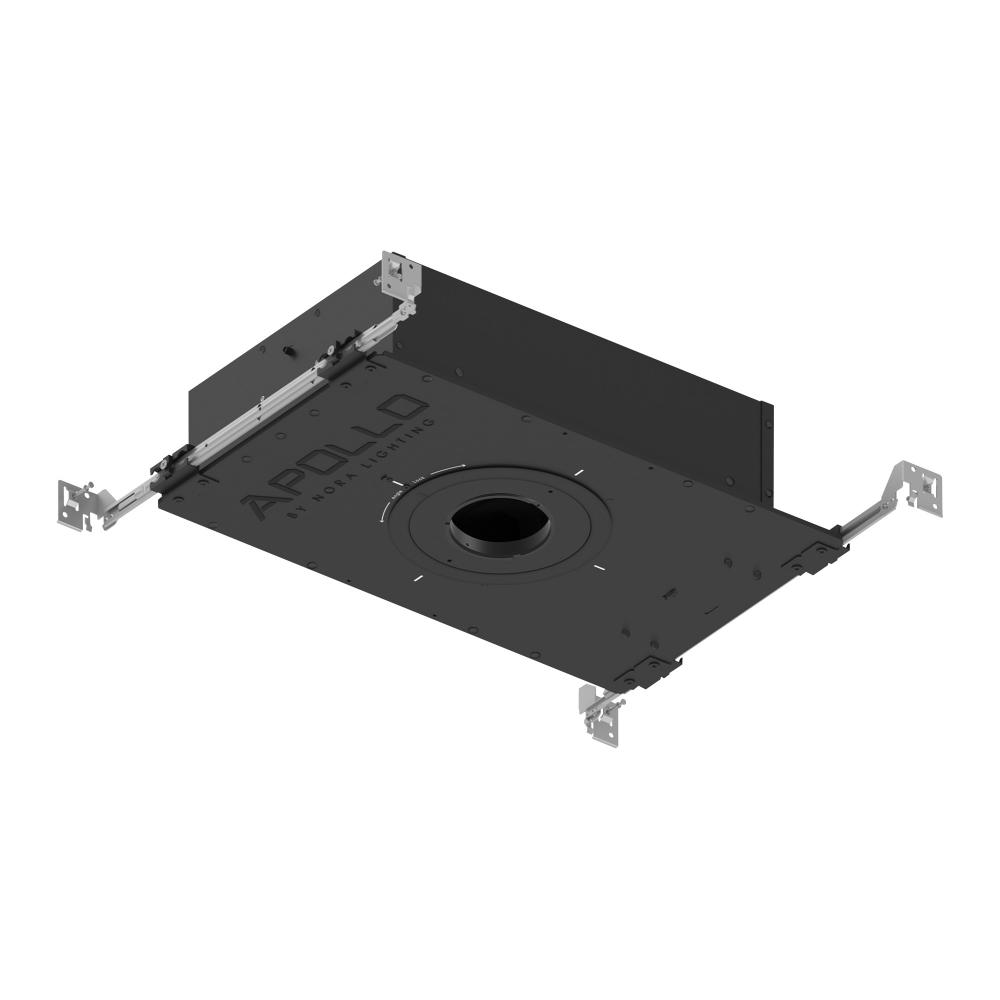

Apollo new construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Adjustable LED mechanism allows for 361° horizontal rotation and 45° vertical aiming. Optimized TIR optics directs the light through the center of the aperture for maximum efficiency and low aperture brightness.
Input Voltage: 120V
Lumens / Wattage: 1000lm / 10W
Color Temperature: 2700K
Color Rendering Index: 90+ CRI
Beam Spread: 26° Spot
Dimming: Phase (Triac or ELV)
Ceiling Thickness: 0.5" to 0.875"
Compatible Trims: NAPF-3RDN, NAPF-3RPH, NAPF-3RWW, NAPT-3RDN, NAPT-3RPH, NAPT-3RWW
Listing: cULus Listed for Damp Locations (Wet locations when used with lensed trim)

Specifications

Details

Option:

Energy Star /vendors/vendorImages energy star.jpg

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Finish:

Black /vendors/vendorImages black.jpg

Category:

Recessed

Product Line:

AP01

Est. Shipping Wt.:

Length:

1.75

Lumens / Light Output:

1000lm

Ship Carton Height:

Ship Carton Length:

Ship Carton Width:

Weight:

7.5

CCT:

2700K

CEC Database:

CEC Item Number:

NHAPIC-3* ** ** ** *** **** + NAP*-3******

CEC Substitute Item:

NHAPIC-3R10L12725DP

Contains Battery:

Country of Origin:

CHN

CRI:

DLC Listed:

Master Box H:

Master Box L:

Master Box Qty:

Master Box W:

Master Box Wt.:

Product Family:

Apollo

Safety Listing:

cULus

Wattage:

10W

Manufactured By:

Nora

Other Details

13.6
